NEXT GENERATION.

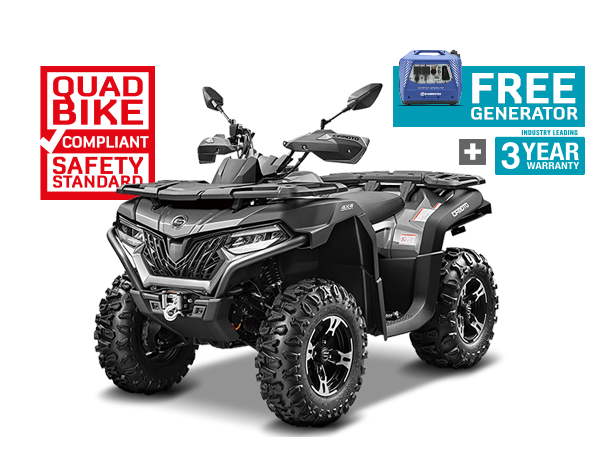

Introducing the CFORCE 625 EPS – a short-wheelbase ATV platform from CFMOTO that has received rave reviews since its global debut. All new from the ground up, the CFORCE 625 EPS features sharp styling, improved independent dual A-Arm suspension, four wheel hydraulic disc brakes and a class-leading turning circle.
GREATER POWER.
Greater power and greater carrying capacity makes this quad one versatile machine. The newly designed 580cc engine is the largest single cylinder ATV in the range.
CHASSIS & SUSPENSION.
Completely new from the ground up, the CFORCE 625 EPS is loaded with new features that are already making it a popular choice amongst Aussie farmers. Completely new styling, new LED lights, enhanced chassis, newly designed dual A-Arm suspension for better ride performance, class leading tighter turning circle of 7.25m and all new 4 wheel hydraulic disc brakes.
NEW ATV LEGISLATION.
Mojo Motorcycles, the Australian importer of CFMOTO, has introduced an updated range of quad bikes to meet stage 2 requirements of the Consumer Goods (Quad Bike) Safety Standard. If the model is advertised with the ‘Quad Bike Safety Standard Compliant’ logo, it is compliant with the requirements of stage 2 and will be supplied with a Quadbar OPD. The Quadbar OPD is installed by your CFMOTO Dealer during pre-delivery. Additional information on Quadbar OPDs can be found at www.quadbar.com
TILT ANGLE.
To comply with stage 2 requirements of the Consumer Goods Quad Bike Safety Standard all CFMOTO quad bikes have been tilt angle tested. The minimum standard to pass the lateral stability tilt angle test is 28.81 degrees. The CFORCE 625 EPS exceeds the minimum lateral stability tilt angle test with a result of 31.1 degrees.
SUPPORT YOU CAN TRUST.
Trusted by more than 25,000 Aussie Farmers, CFMOTO is a brand you can rely on. Backed by a 2 Year Warranty on all ATV and UTV models and supported by an 80+ national dealer network to keep you going 24/7.
Specifications
ENGINE & TRANSMISSION |
|
Engine Type: | Single cylinder, liquid cooled, EFI, 4 stroke engine |
Displacement: | 580cc |
Max. Power: | 40 hp |
Max. Torque: | 49 NM |
Fuel System: | Bosch EFI |
Transmission: | Canadian CVTech |
Drive: | H-L-N-R-Park |
4WD: | 2WD/4WD with locking front & rear differential |
Rear Differential: | Open rear differential |
Steering: | Electronic power steering (EPS) |
SUSPENSION & BRAKES |
|
Suspension: | Double A-Arm, independent |
Brakes: | All 4 wheel hydraulic disc brakes |
Wheels: | 12 inch alloy |
Tyres: | 25 inch CST / 6 Ply rating |
DIMENSIONS |
|
L x W x H: | 2060 x 1180 x 1220 mm |
Wheelbase: | 1280 mm |
Ground Clearance: | 270 mm |
Dry Weight: | 390 kg |
LOAD |
|
Towing Capacity: | 350 kg |
Carry Capacity: | 35 kg front / 70kg rear |
Person: | 1 |
Fuel Capacity: | 18 L |
FEATURES |
|
Colour: | Titanium Grey |
Warranty: | 2 Year Warranty |
Tow Pack, Horn, Lights & Mirrors: | Yes |
