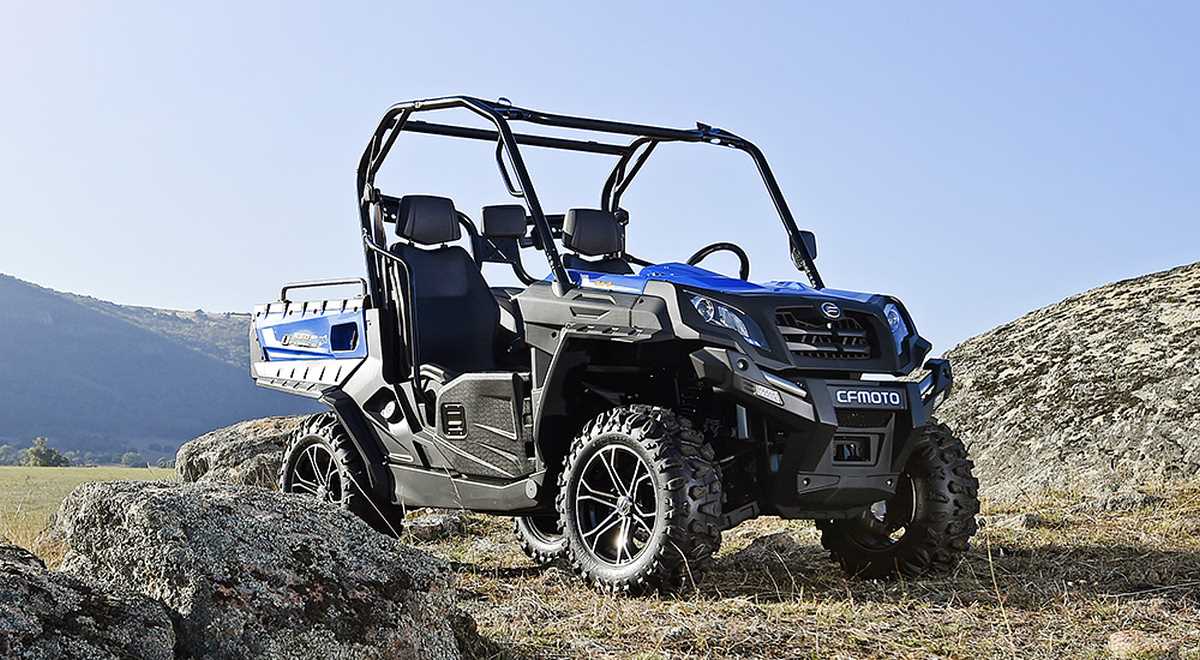

A welcome addition to the CFMoto utility family, the U550 will tackle any size project head on.
Fully loaded with a heavy duty towing kit, it won’t be long before you, and everyone else realises you made a smart move with the U550.
CFMoto have stayed true to their value for money promise with this incredible vehicle, offering a powerful side by side for the price of most other manufacturers’ ATV’s!
With more than 80 dealer’s nationwide ready to help answer any questions or provide first class servicing for all your CFMoto vehicles, you are in capable hands.
Readily available from your local CFMoto dealer in Blue, visit your local dealer today and get ready to Out Haul the Rest with your new CFMoto U550.
Features
- 500cc Single cylinder, 4 Valves, SOHC Engine
- Liquid Cooled with Bosch EFI
- Selectable 2WD/4WD Modes, L-H-N-R range with lockable diff
- Independent adjustable front and rear suspension
- Gas assisted rear tip tray
- Indicators, horn and mirror as standard
- Tow package
- ROPS approved roll cage
- 14 inch black steel wheels
- 6 ply tyres
- Towing capacity – 550kg
- Carrying capacity – 230kg
Specifications
| Engine | |
| Engine type: | Single cylinder, 4 Valves, 4 Stroke, SOHC |
| Displacement: | 495cc |
| Power: | 28kW / 38hp @6800 RPM |
| Bore and stroke: | 91 X 76.2mm |
| Compression: | 10.3:1 |
| Fuel system: | EFI (Bosch) |
| Max Torque: | 46N.m / 5800 RPM |
| Cooling System: | Liquid |
| Ignition: | ECU |
| Starter: | Electric |
| Transmission: | CVTech |
| Lubrication: | Pressure & splash |
| Size / Weight | |
| Length x Width x Height: | 2980 x 1430 x 1855 mm |
| Wheelbase: | 1,830 mm |
| Ground Clearance: | 280 mm |
| Fuel Capacity: | 26 L |
| Dry Weight: | 590 kg |
| Wheels | |
| Wheels Front: | 14 x 7.0 Steel Wheels |
| Wheels Rear: | 14 x 8.0 Steel Wheels |
| Tires Front: | AT 26 x 9-14 52J 70 |
| Tires Rear: | AT 26 x 11-14 66J 100 |
| Suspension | |
| Front: | Independent |
| Rear: | Independent |
| Brake | |
| Front: | Hydraulic braking, double disc |
| Rear: | Hydraulic braking, single disc |
| Capacity | |
| Towing: | 550kg |
| Carrying: | 230kg |
| Tray | |
| Dimensions (LxWxH): | 1200 x 790 x 310 mm |
