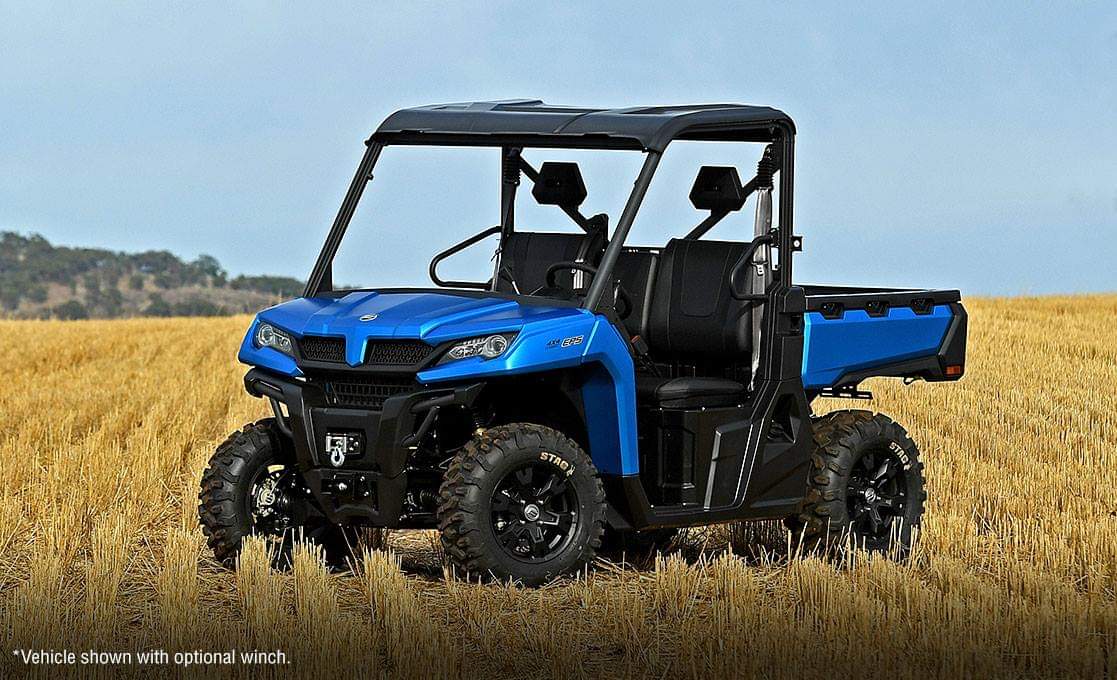

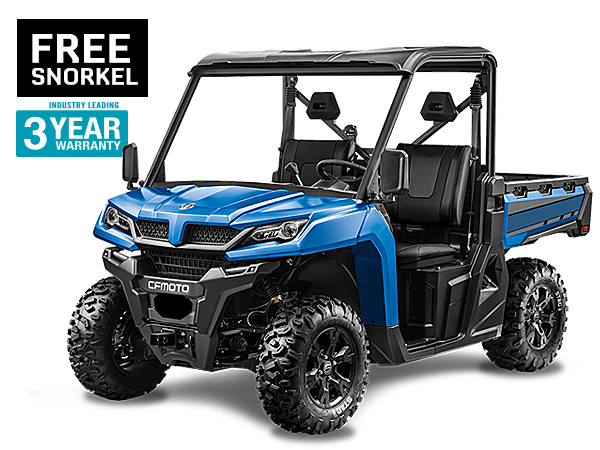

Completely new from the ground up and powered by CFMoto’s 1000cc V-Twin engine that delivers greater tow
and carrying capacities, greater useable horsepower and a greater feature list than ever before.
In-cab storage that totals to an enormous 75.5 litres, a wide bench seat capable of accommodating 3
passengers, rear limited slip differential (LSD) and a safety focused four-wheel disc brake package all headline
the list of work ready features.
It’s not only the standard feature list that makes the U1000 a standout in the showroom. Customers can now
customise their all-new U1000 with the largest range of Genuine CFMoto Accessories ever to ensure their
new vehicle is up to the task.
CFMoto’s toughest yet and more work ready than ever before. The U1000 has completely revolutionised
CFMoto’s UTV range taking it to the Next Level, and most importantly at a price that offers Aussie farmers
one hell of a deal.
Features
- 1000cc Single cylinder, liquid cooled, 4 Valves, SOHC Engine
- Bosch EFI with fly by wire accelerator
- Selectable 2WD/4WD Modes, L-H-N-R range with lockable front diff
- Front Double A-Arm suspension, 230mm of wheel travel, oil shock
- Rear Double A-Arm, 230mm of wheel travel, oil shock
- Front Dual Hydraulic disc brakes with twin piston caliper
- Rear Dual Hydraulic disc braking with single piston caliper
- Gas assisted rear tip tray
- Indicators, horn and mirror as standard
- Tow package
- ROPS approved roll cage
- 14 inch black steel wheels
- Front 27 x 9-14 radial 8ply CST Stag tyres
- Rear 27 x 11-14 radial 8ply CST Stag tyres
- Towing capacity – 800kg
- Carrying capacity – 350kg
Specifications
| Engine | |
| Engine type: | Single cylinder, 4 Valves, 4 Stroke, SOHC |
| Displacement: | 495cc |
| Power: | 28kW / 38hp @6800 RPM |
| Bore and stroke: | 91 X 76.2mm |
| Compression: | 10.3:1 |
| Fuel system: | EFI (Bosch) |
| Max Torque: | 46N.m / 5800 RPM |
| Cooling System: | Liquid |
| Ignition: | ECU |
| Starter: | Electric |
| Transmission: | CVTech |
| Lubrication: | Pressure & splash |
| Size / Weight | |
| Length x Width x Height: | 2980 x 1430 x 1855 mm |
| Wheelbase: | 1,830 mm |
| Ground Clearance: | 280 mm |
| Fuel Capacity: | 26 L |
| Dry Weight: | 590 kg |
| Wheels | |
| Wheels Front: | 14 x 7.0 Steel Wheels |
| Wheels Rear: | 14 x 8.0 Steel Wheels |
| Tires Front: | AT 26 x 9-14 52J 70 |
| Tires Rear: | AT 26 x 11-14 66J 100 |
| Suspension | |
| Front: | Independent |
| Rear: | Independent |
| Brake | |
| Front: | Hydraulic braking, double disc |
| Rear: | Hydraulic braking, single disc |
| Capacity | |
| Towing: | 550kg |
| Carrying: | 230kg |
| Tray | |
| Dimensions (LxWxH): | 1200 x 790 x 310 mm |
