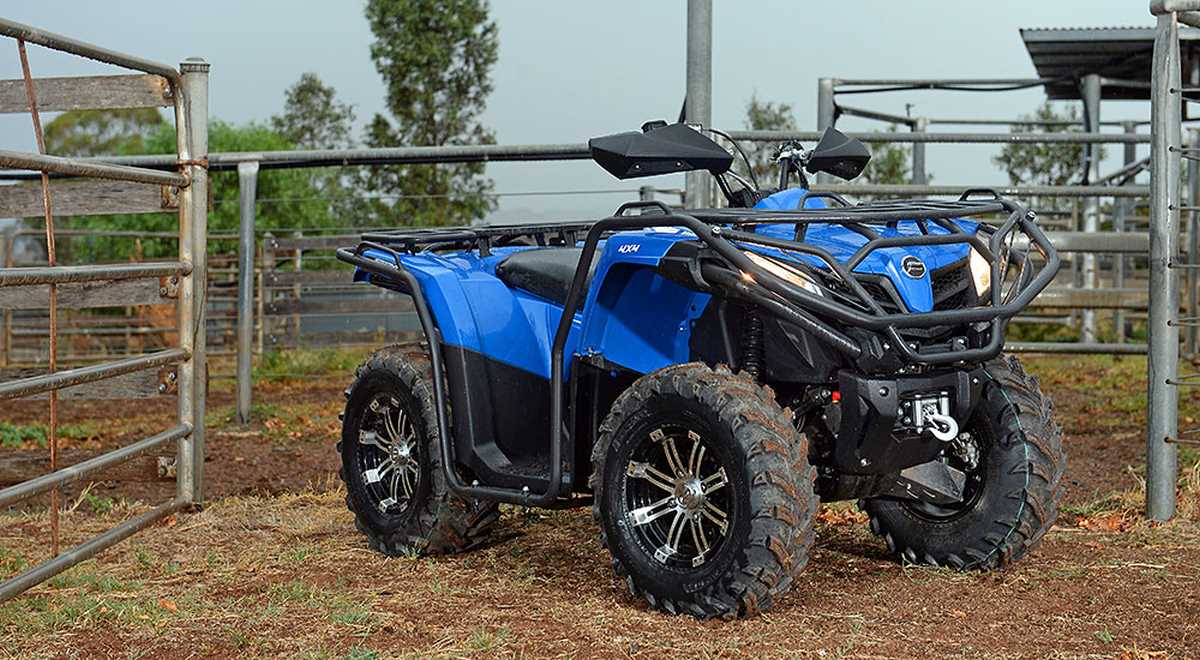

A rugged performer, the Farm Spec includes more than $2,500 worth of extras such as 2500 lbs winch, wrap around protector bars, tow pack, hand guards, alloy A-Arm protectors, alloy wheels and 25″ 6 ply tyres. The sturdy front and rear steel racks offer ample room for work tools or man’s best friend.
Electronic fuel injection (EFI) delivers greater fuel efficiency and power, and the electronic power steering (EPS) makes light work of rough terrain.
Features
- Single Cylinder, 4 Stroke, 4 Valve Engine
- Liquid cooled Bosch EFI engine
- CVTech Transmission
- Selectable 2WD/4WD Modes, L-H-N-R range with lockable diff
- Alloy A-Arm protectors
- Wrap around protector bars
- Alloy wheels with 6 ply tyres
- Independent suspension
- Hydraulic disc brakes
- Front and rear racks
- Hand guards
- 2,500lbs winch
- Towing capacity – 350kg
- Carrying capacity – 35kg front / 70kg rear
- Indicators, horn and mirror as standard
- Electric power steering (EPS)
Specifications
| Engine | |
| Engine Type: | Single cylinder, 4 vales, 4 stroke, SOHC |
| Displacement: | 495cc |
| Power: | 28kW / 38hp @6800 RPM |
| Bore & Stroke: | 91 x 76.2 mm |
| Compression: | 10.3:1 |
| Fuel System: | E.F.I. (Bosch) |
| Max. Torque: | 46N·m/5800 RPM |
| Cooling System: | Liquid |
| Ignition: | ECU |
| Starting: | Electric |
| Transmission: | CVTech |
| Size / Weight | |
| Length x Width x Height: | 2100 x 1100 x 1150 mm |
| Seat Height: | 800 mm |
| Wheelbase: | 1,260 mm |
| Ground Clearance: | 270 mm |
| Fuel Capacity: | 18.5 L |
| Dry Weight: | 360 kg |
| Suspension | |
| Front: | Independent |
| Rear: | Independent |
| Brake | |
| Front: | Hydraulic disc |
| Rear: | Hydraulic disc |
| Capacity | |
| Towing: | 350 kg |
| Carrying: | 35kg (front) / 70kg (rear) |
